Dell Pro Max FCT2250 Workstation Tower – Intel Core Ultra

Heavy-Duty AI Compute & ISV-Certified 3D Workstation Power

Engineered for engineering firms, architectural designers, data scientists, and creative production studios, the Dell Pro Max FCT2250 Workstation delivers elite computing power inside an expandable commercial tower. Built to tackle mission-critical tasks, this high-performance system handles complex CAD drafting, real-time 3D rendering, machine learning models, and 8K multi-stream video editing without thermal throttling.

Driven by a flagship 24-core Intel Core Ultra 9 285 processor with Intel vPro Enterprise, a dedicated 13 TOPS Neural Processing Unit (NPU), and a workstation-class NVIDIA RTX 2000 Ada Generation GPU (16 GB GDDR6), the FCT2250 provides certified stability across demanding professional suites like Autodesk AutoCAD, Revit, SolidWorks, Adobe Premiere Pro, and Blender.

Key Features & Commercial Highlights

• 24-Core Intel Core Ultra 9 Flagship: Features Intel's hybrid architecture (8 Performance cores + 16 Efficiency cores) reaching up to 5.60 GHz Turbo to chew through heavy multi-threaded simulations and computational datasets.

• NVIDIA RTX 2000 Ada Generation (16 GB VRAM): Powered by the NVIDIA Ada Lovelace GPU architecture with 16 GB of dedicated high-speed GDDR6 video memory, delivering hardware ray tracing, AI tensor acceleration, and ISV-certified application stability.

• Integrated 13 TOPS AI Acceleration: Intel AI Boost NPU offloads localized AI productivity tools, background compute, and machine learning inference directly on-device.

• 32 GB High-Speed DDR5 Memory: Ships standard with 32 GB of DDR5 SDRAM across 4 DIMM slots—expandable up to 128 GB to support massive datasets and heavy multitasking.

• Fast 1 TB PCIe 4.0 NVMe SSD: Provides high-bandwidth data transfers, instant project load times, and ample storage for large project libraries.

• Cutting-Edge Wi-Fi 7 (802.11be): Outfitted with ultra-fast Wi-Fi 7 wireless connectivity and Gigabit Ethernet for high-speed network rendering and cloud data synchronization.

• Built-In Optical DVD-Writer: Integrated tray-load DVD drive allows seamless physical disc archiving, legacy software installation, and physical media backups.

• 500W High-Efficiency Power Supply & 3-Year Warranty: Powered by a robust 500W internal PSU for full GPU loads, and backed by Dell’s 3-Year Basic Onsite Commercial Hardware Warranty.

Technical Specifications

• Processor: Intel Core Ultra 9 285 (Series 2 / Arrow Lake, 24 Cores / 24 Threads — 8 Performance Cores up to 5.4 GHz Turbo, 16 Efficient Cores up to 4.6 GHz Turbo, 5.60 GHz Max Turbo, 36 MB Intel Smart Cache)

• AI Engine (NPU): Intel AI Boost NPU (Up to 13 TOPS dedicated AI compute)

• Graphics: NVIDIA RTX 2000 Ada Generation (16 GB GDDR6 Dedicated Video Memory, ISV Certified)

• Operating System: Windows 11 Pro (64-Bit)

• Platform Security: Intel vPro Enterprise Technology, TPM 2.0, Kensington Security Slot, Padlock Loop

• Memory (RAM): 32 GB DDR5 SDRAM (Expandable up to 128 GB across 4 DIMM slots)

• Storage: 1 TB PCIe NVMe 4.0 x4 M.2 Solid State Drive (SSD)

• Optical Drive: Slim Tray-Load DVD-Writer

• Dedicated GPU Video Outputs: 4x Mini-DisplayPort 1.4a (Supports up to four simultaneous 4K/5K/8K professional displays)

• Motherboard Video Outputs: 1x DisplayPort 1.4a, 1x HDMI 2.1

• Total USB Connectivity (10 Total):

  • Front: 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 1x USB 3.2 Gen 2 Type-A (10 Gbps), 2x USB 2.0 Type-A

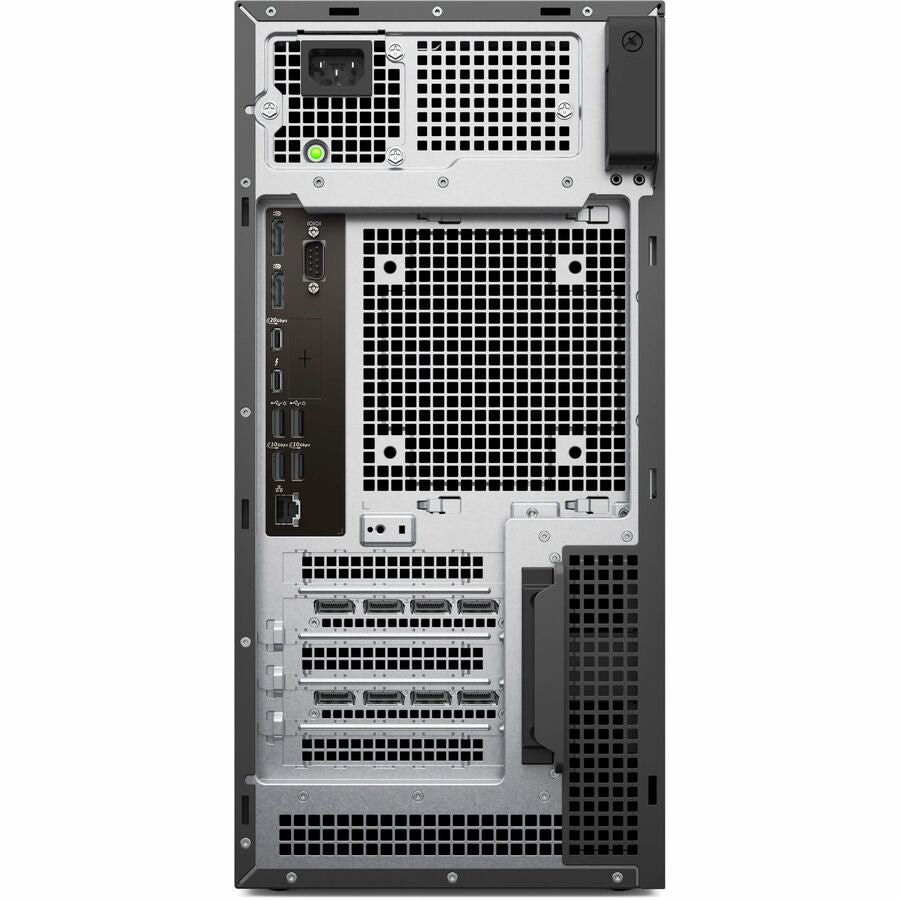

  • Rear: 1x USB 3.2 Gen 2 Type-C (10 Gbps), 3x USB 3.2 Gen 1 Type-A (5 Gbps), 2x USB 2.0 Type-A with SmartPower

• Networking & Wireless: Gigabit Ethernet LAN (RJ-45 10/100/1000), Wi-Fi 7 (MediaTek 802.11be 2x2), Bluetooth 5.4

• Audio: Realtek High-Definition Audio, Front Global Headset Audio Jack

• Chassis & Form Factor: Commercial Full Tower Workstation

• Expansion Slots: 1x Full-Height PCIe x16 slot (Gen 5), 2x Full-Height PCIe x4 slots (open-end)

• Dimensions & Weight: 14.7" (H) x 6.8" (W) x 16.5" (D) | ~20.5 lbs

• Power Supply: 500W Internal High-Efficiency Power Supply (120V / 230V auto-sensing)

• Warranty: 3-Year Dell Basic Onsite Commercial Hardware Warranty

What's in the Box

• Dell Pro Max FCT2250 Tower Workstation

• Dell Commercial USB Wired Keyboard (English US)

• Dell Commercial USB Wired Optical Mouse

• Heavy-Duty AC Power Cable

• Quick Start Setup & 3-Year Warranty Guide
